Set-Loss Easy Correction System



The Set-Loss easy correction system can reduce set loss by using an HG grip with threads cut into the wedge anchorage and imparting prestress to a prestressed concrete (PC) structure in a narrow space. In a conventional set-amount correction system, after prestressing at a certain load, tension is released, the jack is removed, and the designated ram chair and tension jack need to be installed. However, in the Set-Loss easy correction system, the jack does not need to be removed during stress correction because the designated nose includes the ram chair function.

Set-Loss easy correction system hardware

NETIS Registration

NETIS Registration No.: TH-170009-A

Features

  • The jack does not need to be removed during stress correction because the designated nose includes the ram chair mechanism.
  • The working time is shortened because it is not necessary to remove the tension jack.
  • Working space is reduced by using an HG grip, which can re-apply stress with the jack still in place.

Example of Using the Set-Loss System

A slab connection in half-section construction work

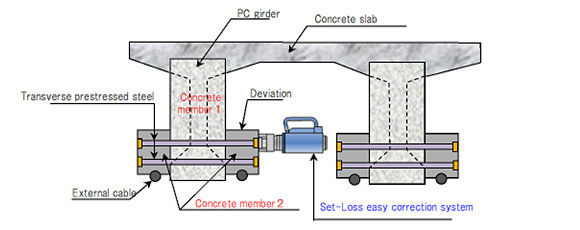

Transverse pre-stressing of outer cable at the anchorage and deflection part
